XAG
R100
Consistently Precise / Perfectly Even

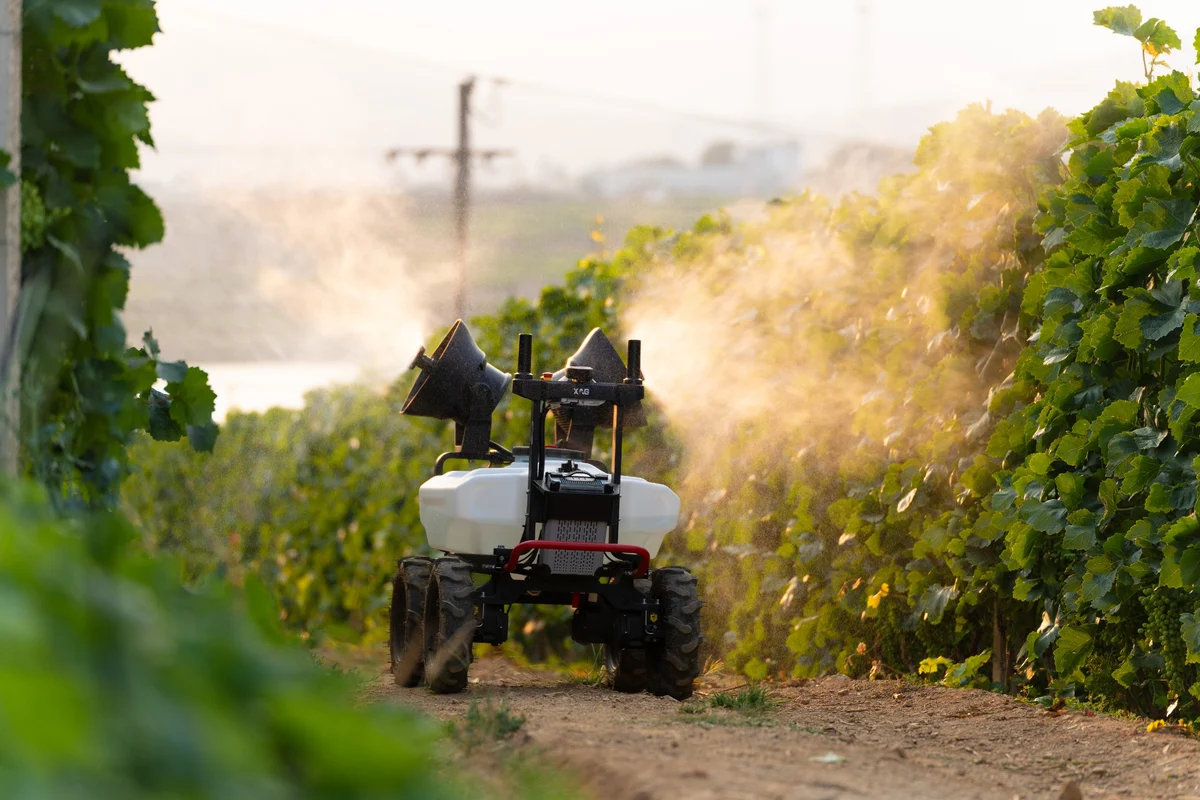

R100 is your trusted partner for plant protection in orchards and greenhouses, providing precise, uniform spraying with simple remote control. It also opens up more possibilities for diverse farming operations.
KEY FEATURES:
- Autonomous operation in hard-to-reach areas (slopes, orchards, greenhouses)
- Low soil compaction compared to tractors
- Modular payloads for spraying, monitoring, and transport
- Long runtime for full-day field work (two batteries included)
- Integrates with XAG ecosystem (drones, app, RTK)
31 in
VEHICLE
WIDTH
20%
MAX.
GRADABILITY
60-200 μm
DROPLET
SIZE
3mph
MAX. TRAVEL
SPEED
2 gal/min
MAX. FLOW
RATE
31 gal
TANK
CAPACITY
XAG R200 SPECS:
PERFORMANCE
- Vehicle Width:31.5 in.
- Net Weight: 176 lbs.
- Max. Travel Speed: 3 mph.
- Max. Payload: 278 lbs.
- Rec. Operating Temperature: 0 - 40 ℃
SPRAYING SYSTEM
- Liquid Tank Capacity: 32 gal.
- Flexible Impeller Pumps: 2
- Max. Flow Rate: 2.1 gal./min.
- Max. Spray Width: 23 ft
- Max. Spray Height: 4.9 ft
- Droplet Size: 60-200 μm
POWER / BATTERY
- Battery: 20 Ah / 1050 Wh
- Rapid Charge: ~ 8 min.
- Charging Temperature: -20 - 40 ℃
- Battery Life: 1,500 cycles or 12 mo.
CONTROL / PERCEPTION
- Video Resolution: 1920 x 1080
- Field of View (FOV): Horizontal 150°; Vertical 105°
- Focal Length: 1.83 mm
- Power Supply Voltage: 24V
- Vehicle Control System: SuperX 5 Ultra Intelligent Control System
POWERTRAIN
- Drivetrain: Independent 4WD; differential steering
- Protection Rating: IPX6
- Tire Size: 16 in.
- Tire Inflation Pressure: 30 PSi
