XAG
R200

Precisely Targeted / Evenly Delivered

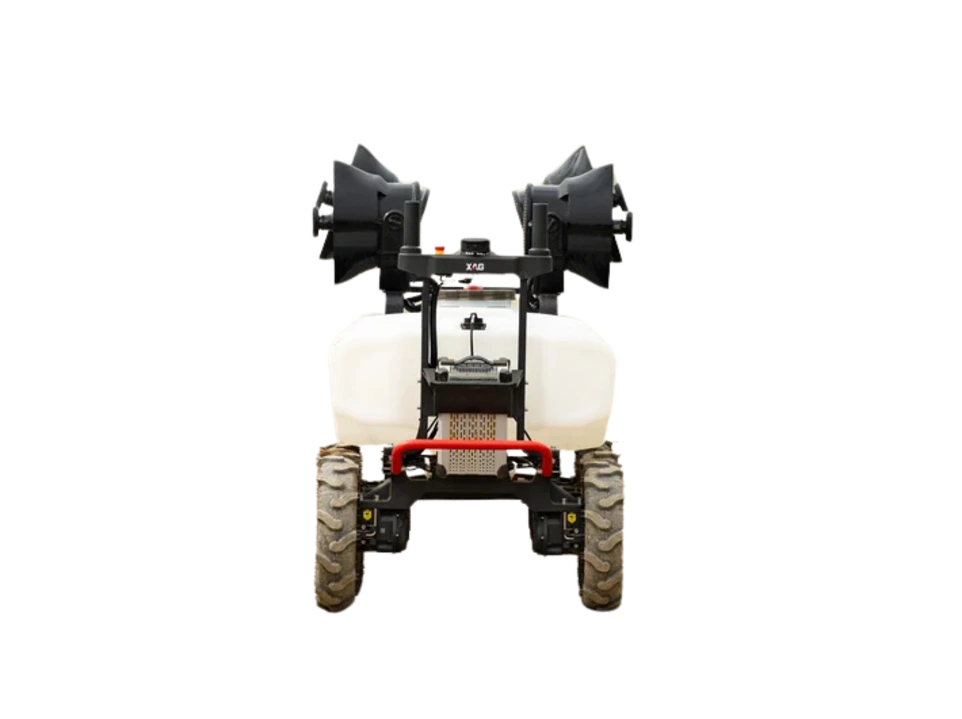

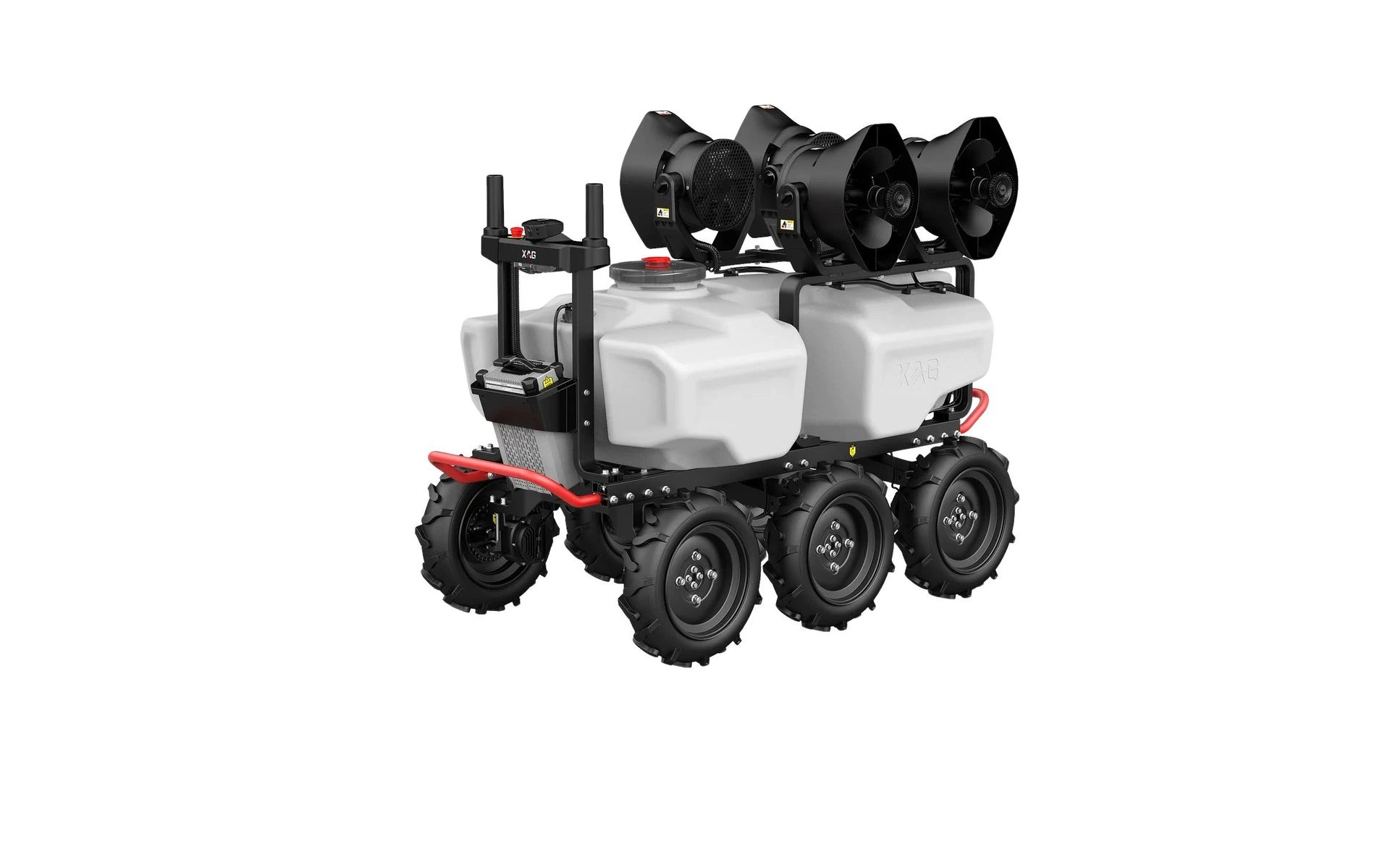

Rover

KEY FEATURES:

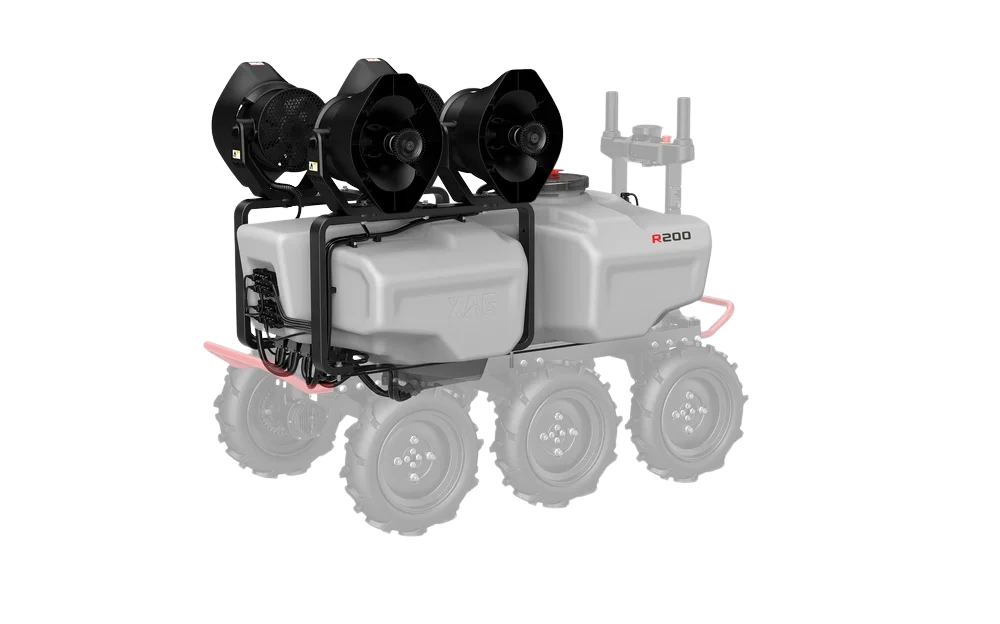

  • High-Volume Precision Spraying: 63 gal smart tank, 4.2 gal/min flow rate via 4 impeller pumps, and 4 centrifugal JetSprayers for deep canopy penetration.
  • Intelligent Autonomous Navigation: SuperX 5 Control System with Cloud/Mobile RTK for cm-level precision, Repeat Mode, and vision path tracking.
  • 6-Wheel Drive & Portal Axle: All-aluminum chassis with independent 6-wheel drive, 10.6 in. clearance, and 20% slope capability.
  • SRC 5 Smart Remote: 7-inch bright display (1200 nits), 150° FPV camera feed, and up to 8-hour battery life.


CROP COMPATABILITY:

  • VINEYARDS
  • ORACARDS
  • LEMONS
  • DRAGON FRUITS
  • AVOCADO
  • GRAPE
  • ETC.

XAG R200 Manufacturer Specs

 31

VEHICLE WIDTH

 3 mph

MAX. TRAVEL SPEED

60-200 μm

DROPLET
SIZE

4 gal/min

MAX. FLOW
RATE

 63 gal

TANK
CAPACITY

20%

MAX.
GRADABILITY

Rover

XAG R200 SPECS:


 PERFORMANCE

  • Vehicle Width:31.5 in.
  • Net Weight: 287 lbs.
  • Max. Travel Speed: 3 mph.
  • Max. Payload: 529 lbs.
  • Rec. Operating Temperature: 0 - 40 ℃

SPRAYING SYSTEM

  • Liquid Tank Capacity: 63 gal.
  • Flexible Impeller Pumps: 4
  • Max. Flow Rate: 4.2 gal./min.
  • Max. Spray Width: 22 ft
  • Max. Spray Height: 4.9 ft
  • Droplet Size: 60-200 μm



POWER / BATTERY

  • Battery: 20 Ah / 1050 Wh
  • Rapid Charge: ~ 8 min.
  • Charging Temperature: -20 - 40 ℃
  • Battery Life: 1,500 cycles or 12 mo.

CONTROL / PERCEPTION

  • Video Resolution: 1920 x 1080
  • Field of View (FOV): Horizontal 150°; Vertical 105°
  • Focal Length: 1.83 mm
  • Power Supply Voltage: 24V
  • Vehicle Control System: SuperX 5 Ultra Intelligent Control System

POWERTRAIN

  • Drivetrain: Independent 6WD; differential steering
  • Protection Rating: IPX6
  • Tire Size: 16 in.
  • Tire Inflation Pressure: 30 PSi
